Hebatronic 3D Connector Series

Precise, robust, and customizable connectors for prototypes, validation, and EoL testing. Hebatronic’s 3D connectors combine mechanical stability with maximum flexibility. They are manufactured using SLS or MJF processes and are optimized for prototypes, test benches, EoL testers, and small series—ideal for applications such as ISELED®, ILaS®, or LED modules.

Our solutions guarantee

About the Hebatronic 3D Connector Series

Our 3D-printed development connector combines precise contact geometry with a robust cable strain relief, an interchangeable locking mechanism, and spring-loaded contact pins for a consistently reliable connection. The design is optimized for high mating cycles, making it perfect for repeatedly and safely contacting production sockets—ideal for laboratory use, validation, and end-of-line test environments.

The surface and material quality are equally impressive: using SLS or MJF manufacturing, the result is an extremely durable, dimensionally stable, and grippy surface that remains shape-stable even under heavy use while offering a premium tactile feel. Perfect for everyday use in development environments.

Additive manufacturing also enables rapid customization—ranging from housing modifications to specialized cable routing.

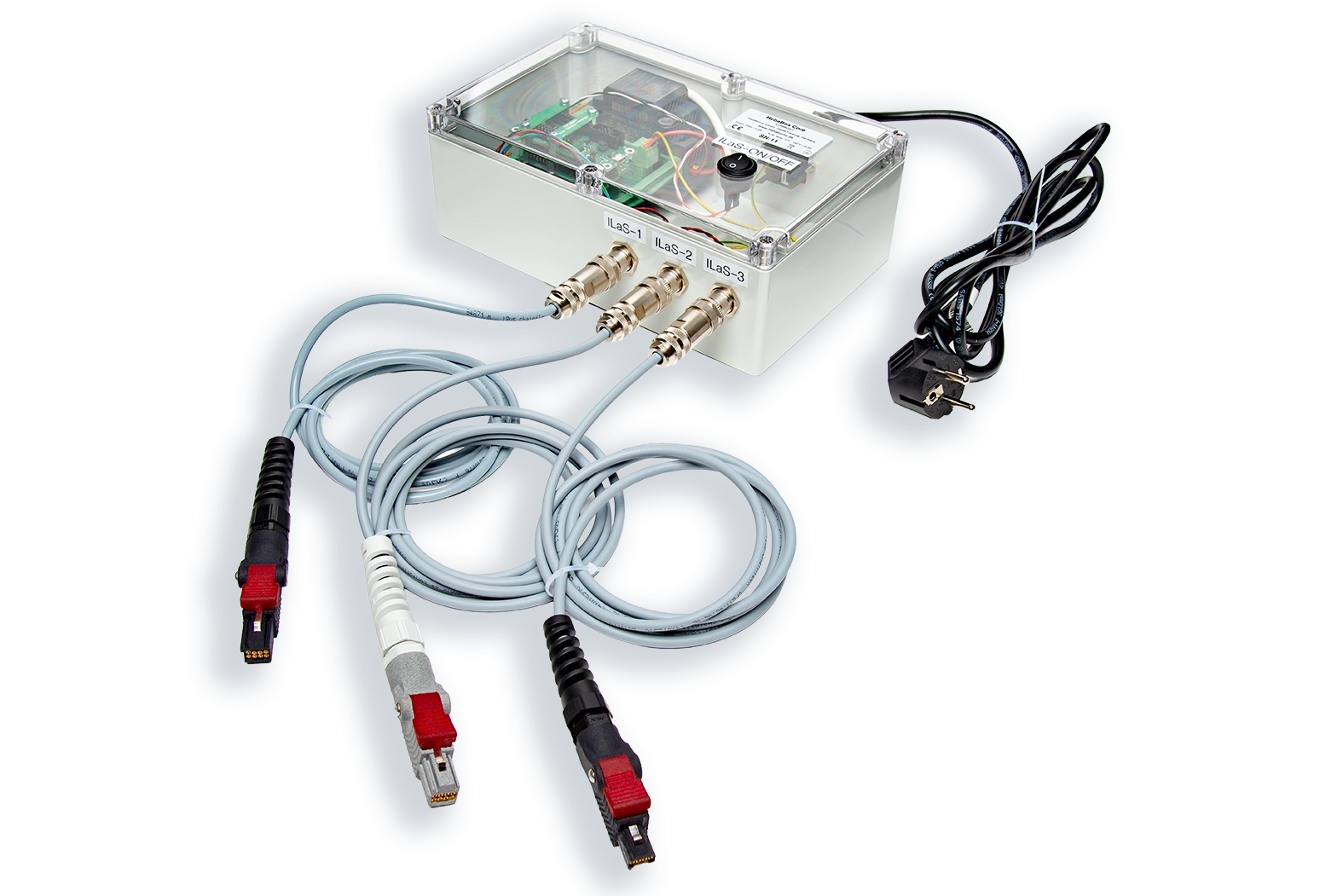

Additionally, the connector serves as an ideal accessory with integrated adapter cable for our ILaS® Initiator Testbox as well as Hebabox/Hebastack—perfectly matched to any ILaS®- and ISELED®-based development and testing platform.

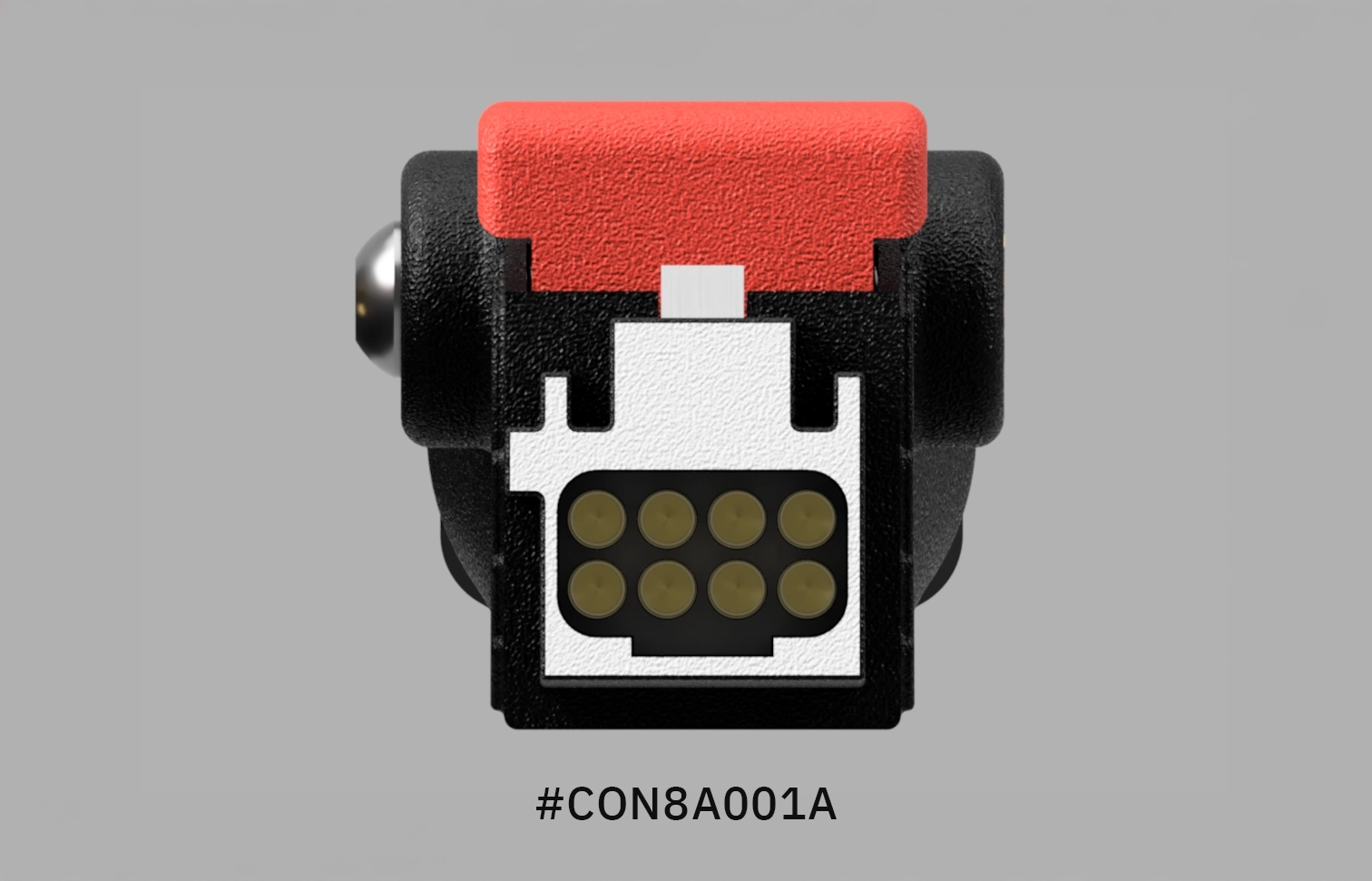

3D-gedruckter Stecker – 8-polig – Teilenummer #CON8A001A – Kodierung A
3D-Printed Connector – 8-Pin – Part Number #CON8A001A – Keying A

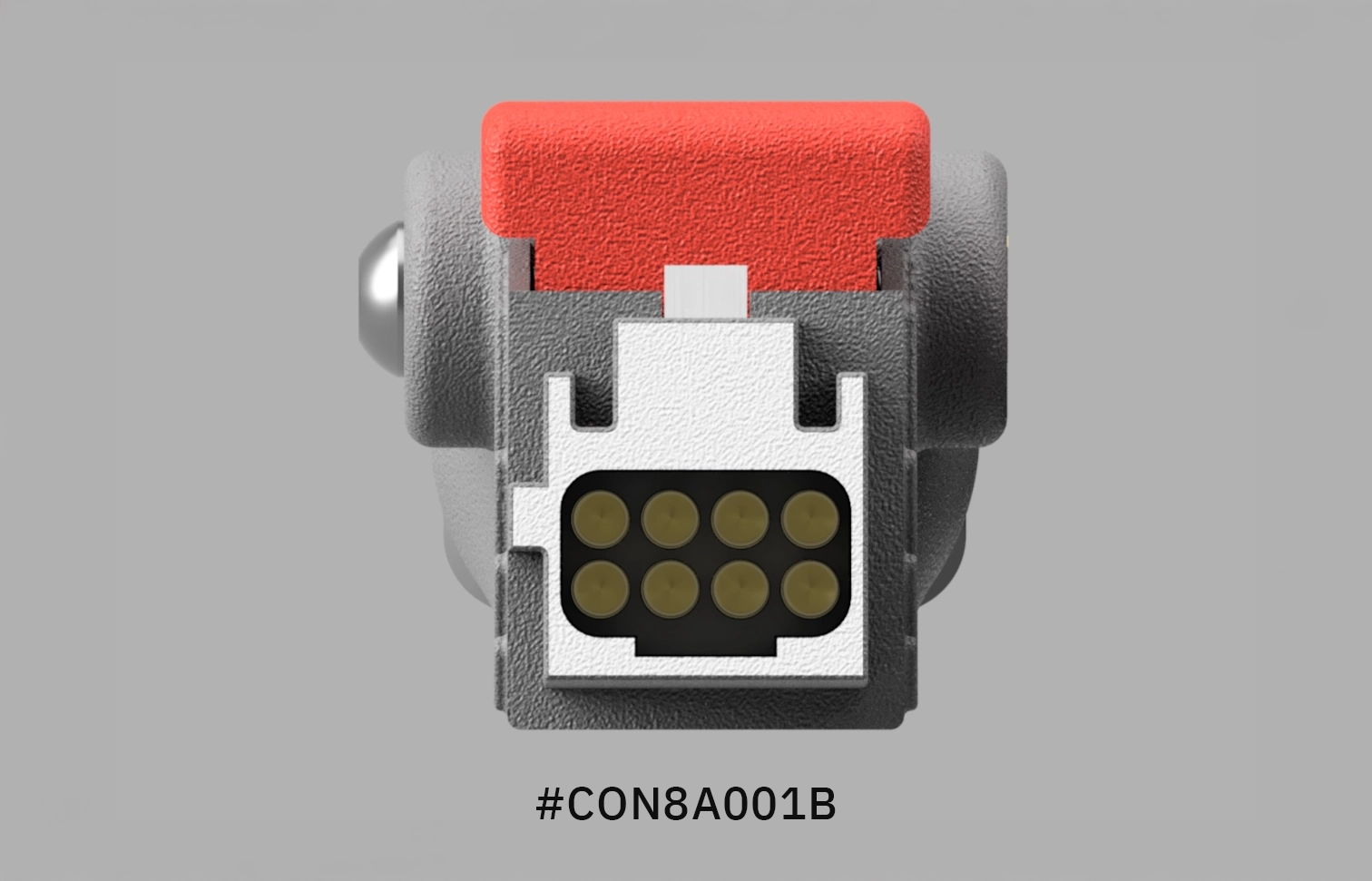

3D-gedruckter Stecker – 8-polig – Teilenummer #CON8A001B – Kodierung B
3D-Printed Connector – 8-Pin – Part Number #CON8A001B – Keying B

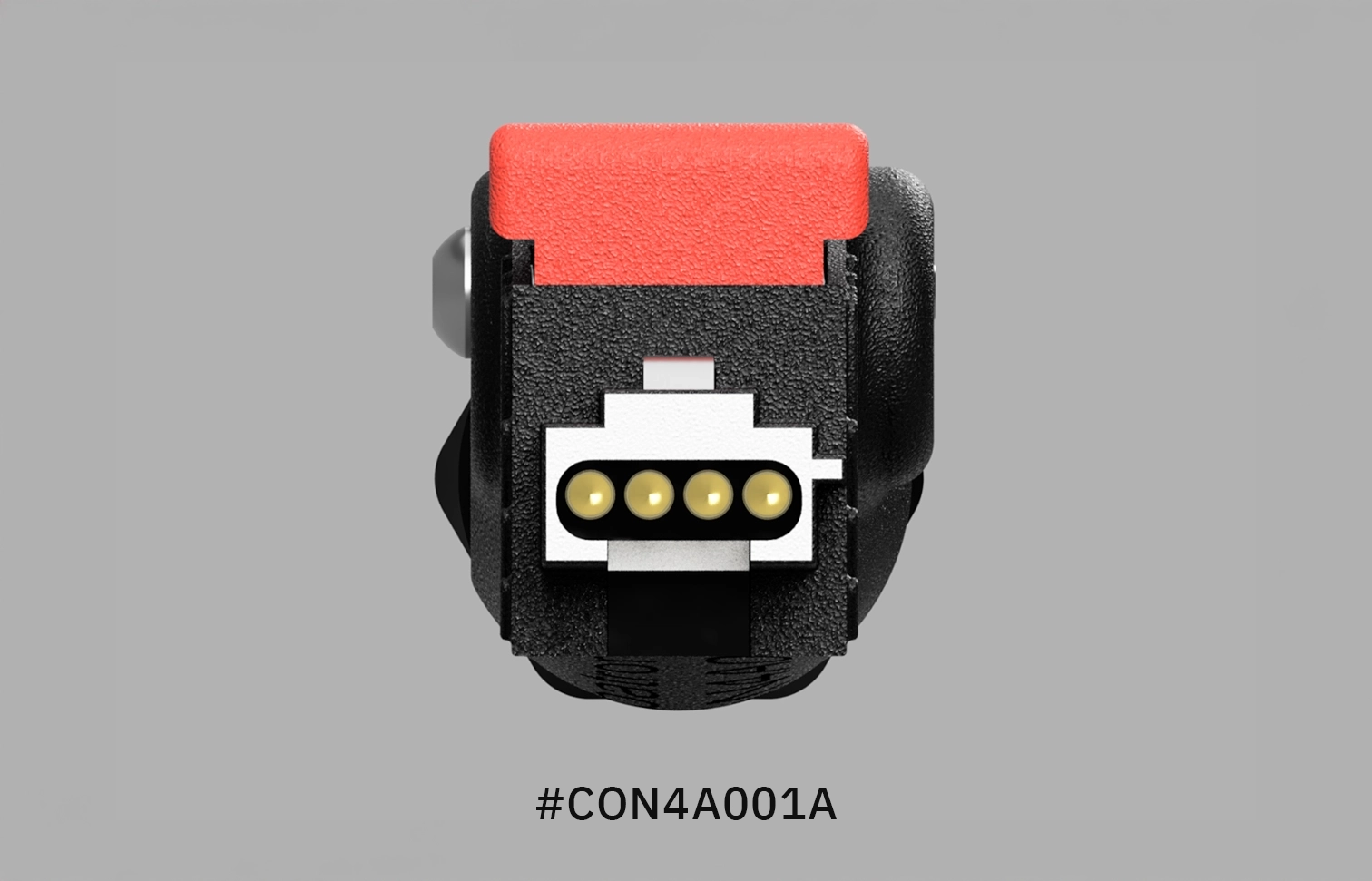

3D-gedruckter Stecker – 4-polig – Teilenummer #CON4A001A
3D-Printed Connector – 4-Pin – Part Number #CON4A001A

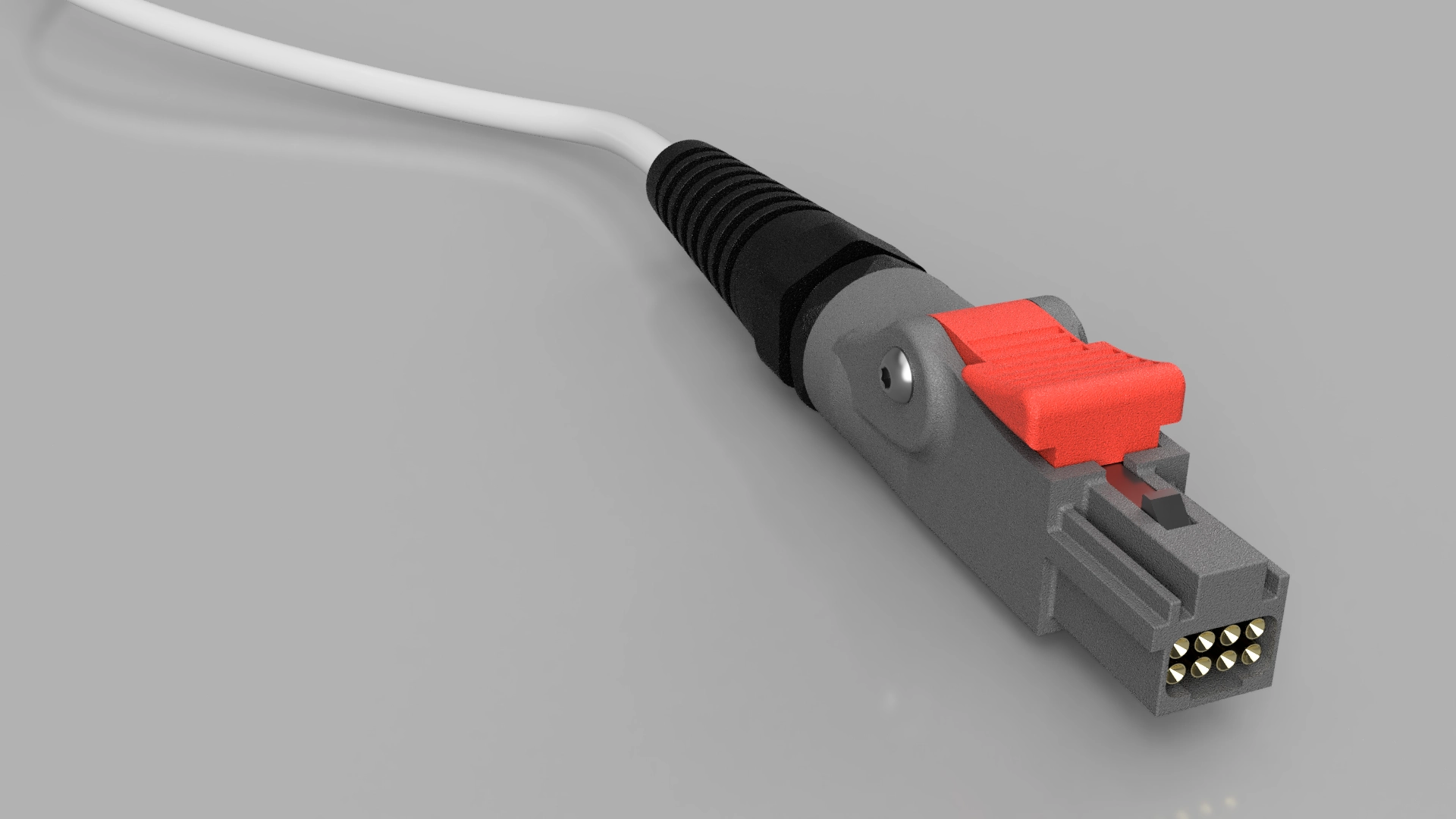

3D-gedruckte Stecker mit integrierter Zugentlastung
3D-Printed Connectors with Integrated Strain Relief

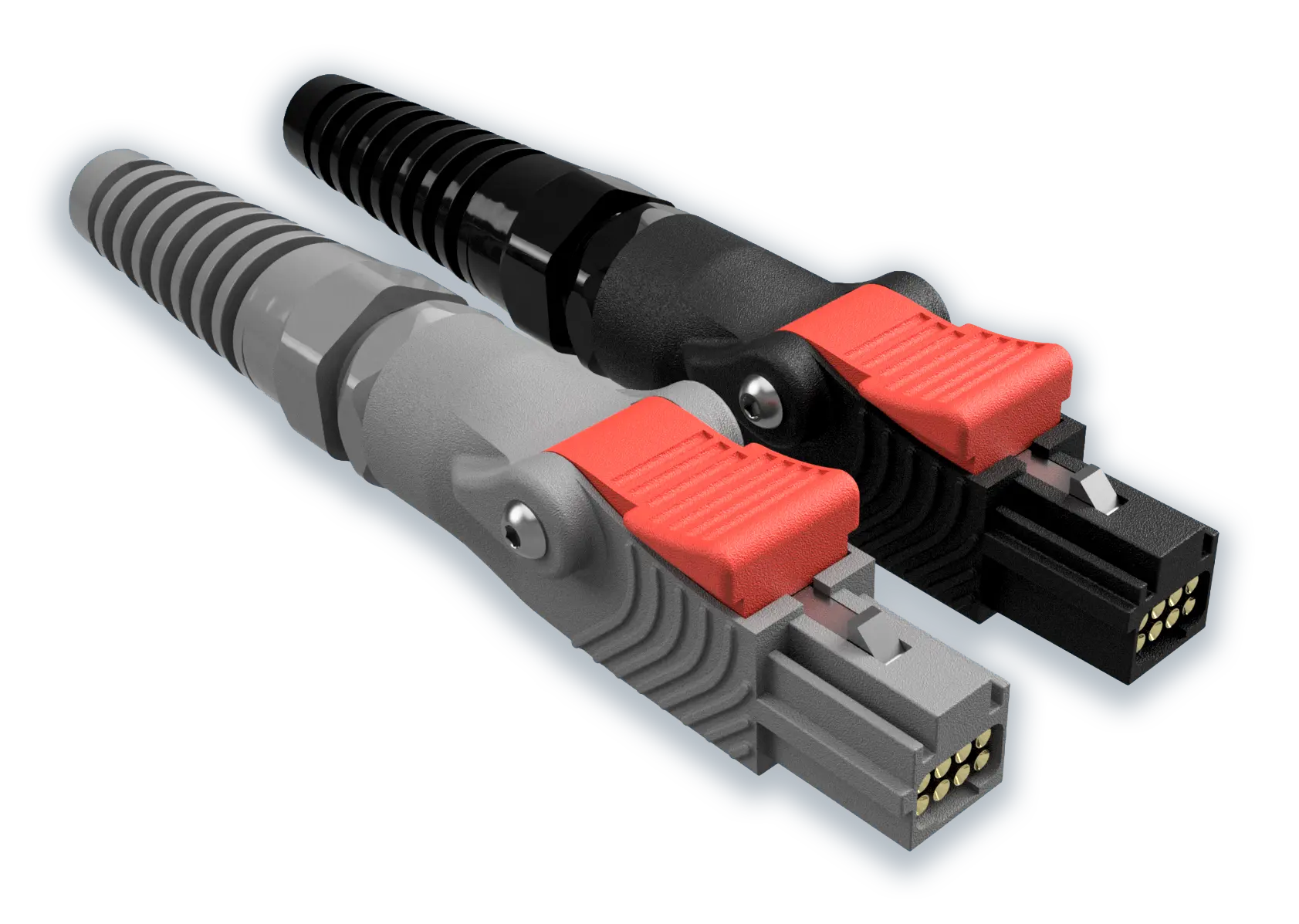

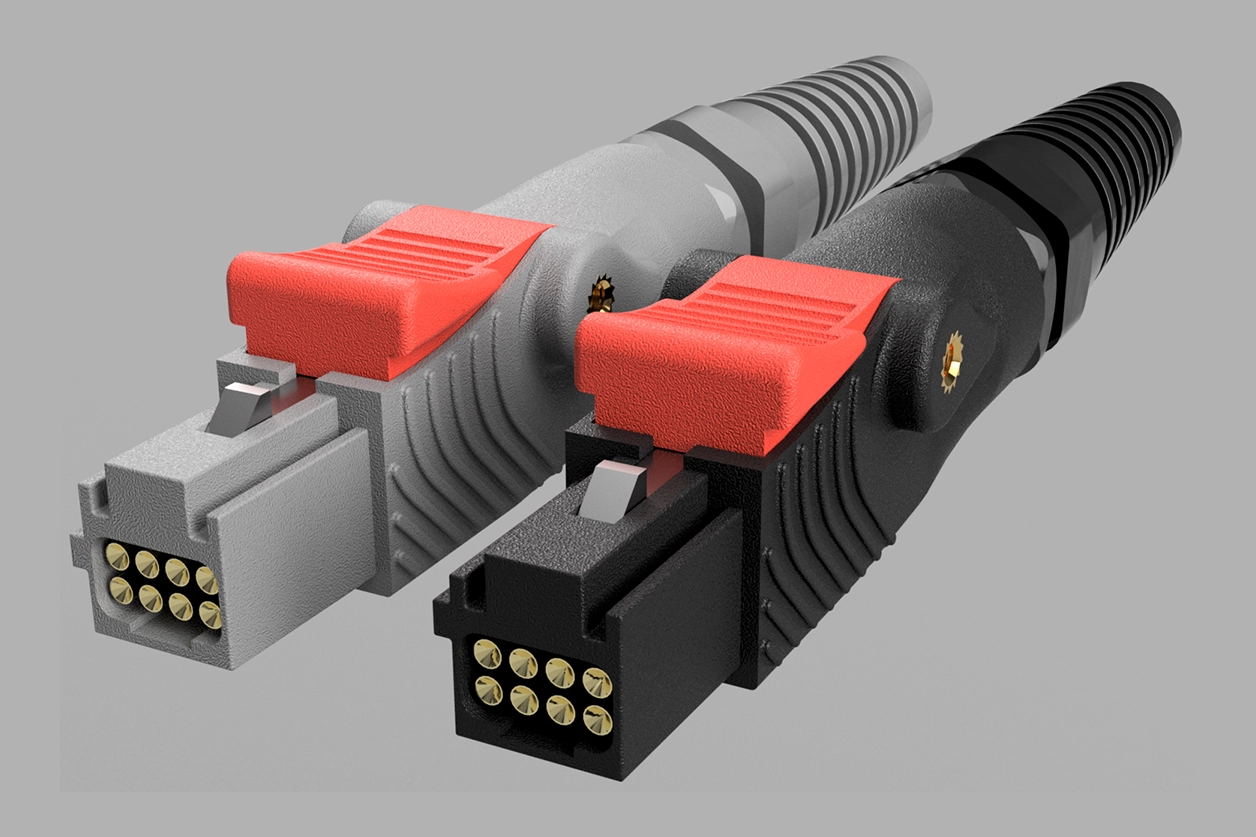

3D-gedruckte Stecker – 8-polig - mit präziser Kontaktgeometrie und ergonomischem Verriegelungsmechanismus
3D-Printed Connectors – 8-Pin – with Precise Contact Geometry and Ergonomic Locking Mechanism
3D-gedruckter Stecker – 4-polig - mit sicherem Verriegelungsmechanismus und sauber geführter Zugentlastung
3D-Printed Connector – 4-Pin – with Secure Locking Mechanism and Cleanly Guided Strain Relief.
Easy programming

Technical Aspects

Experience how easy and efficient programming is with our technology. Our development platforms are specifically designed to enable intuitive and powerful control of ISELED® LEDs.

Arduino IDE

The open-source Arduino software (IDE) allows you to quickly and easily upload code to the board. This is a real advantage for our customers, as the platform is particularly intuitive, flexible, and ready to use immediately.

FastLED – Animation library

If you want it to look particularly beautiful, you can easily control your ISELED® lights with the FastLED animation library by simply replacing the FastLED commands with FastISELED.

Find more information here.

Hebatronic Demo Program

Our demo software is an advanced example program that enables the control of ISELED® LEDs via ILaS®. This demo program requires the use of our ISELED®uino with our ILaS® shield to facilitate communication over the ILaS® bus.

Go to download

Precision Connectors for ILaS® & ISELED® Systems

3D-Printed Connectors
– precise, robust, flexible

The Hebatronic 3D Connector Series combines mechanical precision with design freedom. Ideal for prototypes, validation, and EoL testing – manufactured with perfect accuracy using industrial 3D printing (SLS/MJF) and customizable for any application.

Available Variants

  • CON8A001A / CON8A001B – 8-pin connectors (black / grey)

  • CON4A001A – compact 4-pin connector

  • With integrated strain relief, cable outlet, and coding/locking mechanism

  • Optional with ILaS® measurement cable up to 5 m length

  • Ideal as an interface for EoL testers, validation setups, and system integration
  • Compatible with standard production sockets and connector systems used in vehicle interiors
  • Compatible with standard contact pins and test adapters used in the automotive industry

01/02

Advantages of Our 3D Connector Series

  • Customizable geometry and color options
  • Production-like haptics and functionality
  • Designed for high mating cycles – with a replaceable locking mechanism in case of wear
  • High precision through industrial 3D printing
  • Ideal for test setups, lighting modules, and testing systems
  • Fast implementation from idea to application

Available as accessories for the ILaS® initiator test systems as well as the Hebastack and Hebabox units – or as individual standalone components.

02/02

Frequently Asked Questions

Everything you need to know about our Hebatronic 3D Connector Series

Here you will find answers to the most common questions about our Hebatronic 3D Connector Series. If you need further information, visit our Help Center or contact us directly.

Are there additional options or accessories?2025-11-17T13:11:04+01:00

Optionally, the connectors are available with ILaS® measurement cables up to 5 m in length.
They are also offered as accessories for the ILaS® Initiator test systems as well as the Hebastack and Hebabox units – or can be purchased individually as standalone components.

Are there additional options or accessories?2025-11-17T13:11:19+01:00

Optionally, the connectors are available with ILaS® measurement cables up to 5 m in length.
They are also offered as accessories for the ILaS® Initiator test systems as well as the Hebastack and Hebabox units – or can be purchased individually as standalone components.

Are the connectors compatible with common systems?2025-11-17T13:08:42+01:00

Yes, the 3D connectors are compatible with standard production sockets, in-vehicle connector systems, and contact pins and test adapters used in the automotive industry.

Which variants are available?2025-11-17T13:07:38+01:00

The series includes:

  • CON8A001A / CON8A001B – 8-pin connectors in black or grey
  • CON4A001A – compact 4-pin connector

All models feature integrated strain relief, cable outlet, as well as coding and locking mechanisms.

Which variants are available?2025-11-17T13:08:16+01:00

Which variants are available?
The series includes:

  • CON8A001A / CON8A001B – 8-pin connectors in black or grey
  • CON4A001A – compact 4-pin connector

All models feature integrated strain relief, cable outlet, as well as coding and locking mechanisms.

Which manufacturing technology is used?2025-11-17T13:03:34+01:00

The connectors are produced using industrial 3D printing technologies (SLS or MJF).
These additive methods offer very high dimensional accuracy, repeatability, and mechanical strength—ideal for frequent mating cycles, precise fits, and customer-specific adaptations.
At the same time, 3D printing enables fast turnaround from prototypes to small series production.

For which applications are the 3D connectors suitable?2025-11-17T13:02:38+01:00

The Hebatronic 3D Connector Series has been specifically designed for development, validation, and testing environments.
Typical use cases include prototype setups, EoL (end-of-line) testers, test systems, and integration environments within the ILaS® and ISELED® ecosystem.
Thanks to their high mechanical stability and customizable geometry, they are suitable for both laboratory applications and series-level use in test systems.
