BRS Messtechnik products

After the dissolution of BRS Messtechnik, Hebatronic will take over sales, customer support, and calibration starting in July 2025.

Company Information

Integration into Hebatronic

After 14 years of successful business operations, BRS Messtechnik GmbH was liquidated in June 2025.
Starting in July 2025, Hebatronic GmbH will take over sales, customer support, and calibrations.

Liquidation

BRS has ceased its business operations. The official entry was made under HRB 737254 at the Stuttgart District Court.

Hebatronic takes over

Hebatronic – co-founded by a former BRS shareholder – ensures a seamless transition and continued customer support.

Product Availability

BIM-2B, CTA round cell contacting, and measuring cables: limited quantities available while supplies last.

MBT family: sold out → Recommendation: Burster 2511.

Products

Measuring Devices & Accessories for Battery Testing

Battery Impedance Meter BIM2B

BIM2B is an universal measuring device for use in the development, production and quality assurance of cells.

Properties

  • Measurement of impedance according to active and reactive component or amount and phase
  • Single frequency measurement and spectral impedance measurement (EIS)
  • Graphical representation of the locus (Nyquist diagram)
  • Automatic calculation of the model parameters
  • Offline analysis of spectral measurements
  • Measurement of the battery voltage
  • Measurement of the ambient temperature via an external sensor
  • USB interface for supply and communication

Main Specifications

Voltage range 5V
Impedance ranges 1 / 3 / 10 / 30 / 100 / 300 / 1000 mΩ
Frequency range 0,1Hz….1kHz
Temperature range 0°C…..60°C
BRS Messtechnik Batterie-Impedanz-Messgerät BIM2B Hebatronic

Round Cell Adapter CTA

The round cell adapter CTA is an accessory for the impedance measuring device BIM and enables precise impedance and capacity measurements on battery cells using four-wire technology.

Round cells of the popular formats 18650, 21700 and 26650 can be inserted directly and loaded with currents of up to 5A.

The CTA is connected to the measuring device via a laboratory measuring cable MK-L, but it can also be used together with other measuring devices.

BRS Messtechnik Rundzellen-Adapter CTA Hebatronic

Measurement cables

MK-L – Laboratory measuring cable with lab plugs

The measuring cable is 1m long and has 4 laboratory plugs 4mm, which allow a universal connection of standard test clamps or test probes.

It is the universal measuring cable for all internal resistance and impedance measurements.

Standard cable for BIM.

MK-L-Set – Laboratory measuring cable with lab plugs

The measuring cable is 1m long and has 4 laboratory plugs 4mm, which allow a universal connection of standard test clamps or test probes.

The set contains 4 alligator clips and 4 cable lug adapters for M4 / M6 / M8.

Standard cable for BIM.

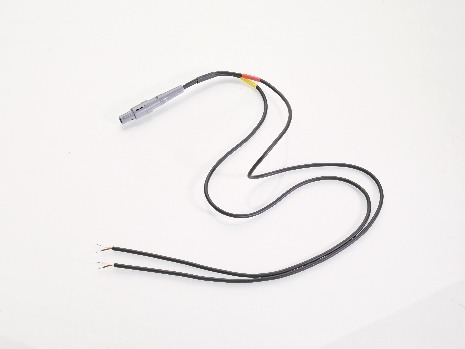

MK-O – Measurement Cable with open ends

The measuring cable is 80cm long. Own contacts can be connected to the open ends.

MK-K – Measuring Cable with big Kelvin clamps

This measuring cable has 2 large Kelvin clamps and is 1m long.

It is easy to use and is suitable for internal resistance measurements on larger batteries.

Suitable for internal resistance measurements.

TMK-PT1000 – Temperature measuring cable with PT1000

Measuring cable for connection to the auxiliary measuring input with temperature sensor PT1000 in TO92 housing, 1m long.
